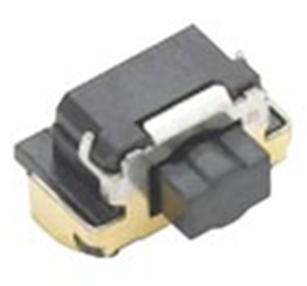

TSFA02

Rating : 50mA 12V DC
Travel : 1st 0.4±0.1mm 2st 0.6±0.1mm

Product Detail





Features

  Sharp click feel with a positive tactile feedback.

  Ultraminiature and light weight structure suitbable

   for high density mounting,Economical but reliable.
  Insert molding in the contact with special treatment
   prevents flux build-up during soldering and permits auto-dipping



Applications

  Cameras,digital still cameras
  Digital video camcorders Compact portable devices




Main specifications
Rating 50mA 12V DC
Travel 1st 0.4±0.1mm     2st 0.6±0.1mm
Contact Resistance 100 mΩ max.
Operating temperature -20°C~70°C (45%~85% RH)
Operating Force 1st 100gf±30gf 2st 250gf±60gf
Operating Life 100,000 Cycles

TSFA02.pdf
