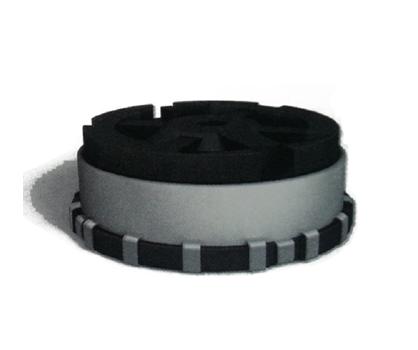

TEED02

Rating : 50mA 12V DC
Travel : Center:0.15mm

Product Detail



Features
  Compact with thin profile
  A push on switch with a clear-click operational feel
  An encoder with detents and excellent
  operational feel
Applications
  Menu selection and input for Audio Visual Equipment
  Memory paging and transmitting
  Portable audio devices, Personal digital assistant.

Main specifications

                                           Encoder                             Push on

Rating

  50mA 12V DC

Detent(pulse) /Travel  16 detent(8 pulses)

Center:0.15mm

4-direction:5°±3°

Operating Force  150gf

Center: 500±50gf

4-direction:400±50gf

Contact Resistance 1Ω Max
Operating Life 30,000 Cycles

TEED02.pdf
