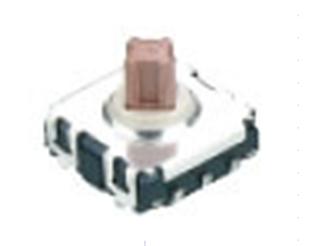

TSFB01

Rating : 50mA 12V DC
Travel : 4 Direction 0.25mm Center push 0.15mm

Product Detail

Features
  Surface mount type tact switch.
  4-directions & center push type.
  Outline dimension 6.2mm x 6.0mm and 5.0 mm height.
  Octagonal shape.

Applications
  Operating switches in all types of electronic equipment
  Mobile phones, PDA equipments, MP3P set, Digital Camera
  Portable audio devices, Personal digital assistant.

  Operating signal input switches, etc.



Main specifications
Rating 50mA 12V DC
Travel 4 Direction 0.25±0.1mm Center push 0.15±0.1mm
Contact Resistance 500 mΩ max.
Operating temperature -20℃ ~ 70℃ ( 45% ~ 85% RH )
Operating Force 4-direction : 160gf±40gf Center push : 240gf±60gf
Operating Life 20,000 Cycles

TSFB01.pdf
